Mesh Router 1300Mbps Dual Band WIFI MediaTek Signal Amplifiers
Description:
EP-AC2937 is using MT7621A+MT7615D of MediaTek Mesh solution.
It can work together and create one reliably strong and fast Wi-FI system to cover whole home.
It just using one network name and you can roam on any mesh device without switch by manual.
2T2R 802.11n 2.4GHz WiFi speed up to 400Mbps data rates.
2T2R 802.11ac wave2 5GHz WiFi speed up to 867Mbps data rates
Features:
Supports WEB based management and configuration.
Compatible with IEEE 802.11b/g/n/a/ac wave-2 specifications.
Supports WPA-PSK, WPA2-PSK encryption.
Supports WPS (Wi-Fi Protected Setup).
Supports DHCP client, static IP, PPPoE of WAN Interface.
Supports DHCP server to provide clients auto IP addresses assignment and static DHCP functions.
Supports Gigabit Ethernet (10M/100M/1000M).
Specifications:
Standard: 802.11ac/a/b/g802.3/802.3u/802.3ab
Data transfer Rate: 1267M(867+400)bps
Modulation Method: CCK, DQPSK, DBPSK, BPSK, QPSK, 16QAM, 256QAM
Frequency Band: 2.4GHz and 5.8GHz
RF Output Power( tolerance?2dBm):
17dBm-802.11b11Mbps15dbm-802. 11g 54mbps13dbm-802. 11gn HT20MCS713dbm-802. 11gn HT400MCS715dBm80211a54Mbps13dbm-802.lan HT20MCS713dbm-802.1lan HT40MCS711dbm-802 11ac VHT80MCS9
Receiver Sensitivity:
80dbm-802.11b(11mbps70dBm-802.11954Mbps68dbm-802. 11gn HT20MCS7-66dbm-802. 11gn HT40(MCS7-70dbm-802.11a(54 Mbps68dbm-802.lan HT20MCS766dbm-802.lan HT40MCS7-54dbm-80211ac VHT80(Mcs9
Antenna: Internal Antenna
LED: WPS,POWER,2.4G,5G
Security: WEP64/128. WPA WPA2

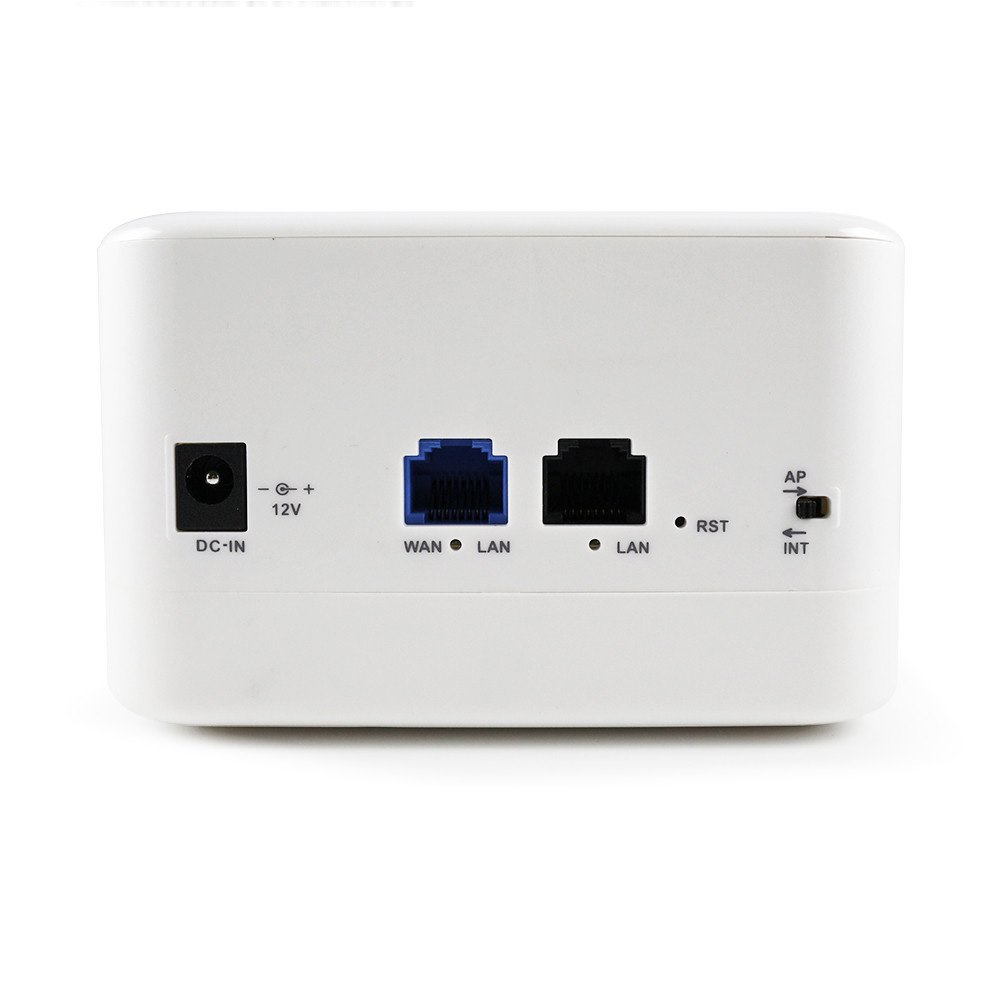

Interface: 2 x 10/100/1000 Baset with RJ45 port(LAN*1+ WAN*1)
Power supply: DC 12V/1A
Operating Temperature: 0-40℃ ambient temperature
Storage Temperature: -10-70℃ ambient temperature
Humidity: 5 to 90 maximum(non-condensing)
Package Included:
1 x Mesh Router
1 x Power Adapter
