Ezcap 295 HD Capture Pro HDMI 1080 Video Capture Converter
With this ezcap295 HD Capture Pro, you can capture up to 1080P video from component or composite port.
It has record and playback two function in one device, so you can playback the record directly.
This device will bring you nice digital experience.
Features:
HD Capture: Capture HD video up to 1080P from HD, component video and composite video.
Output: With HD output to connect big displayer, Works with for OBS on your computer for live video streaming.
Personal Recording Settings: Schedule recording, snapshot, recording resolution, watermark, mute/volume adjust, aspect ratio.
Playback: With Playback function, allows you playback the recorded video directly, and delete the files you want.
Applicable Connection: Sutable for WiiU / Xbox 360 / Xbox One / PS4 / PS3, HD Camera, Set-Top Box and medical device.
Specifications:
Interface: USB 2.0 Host

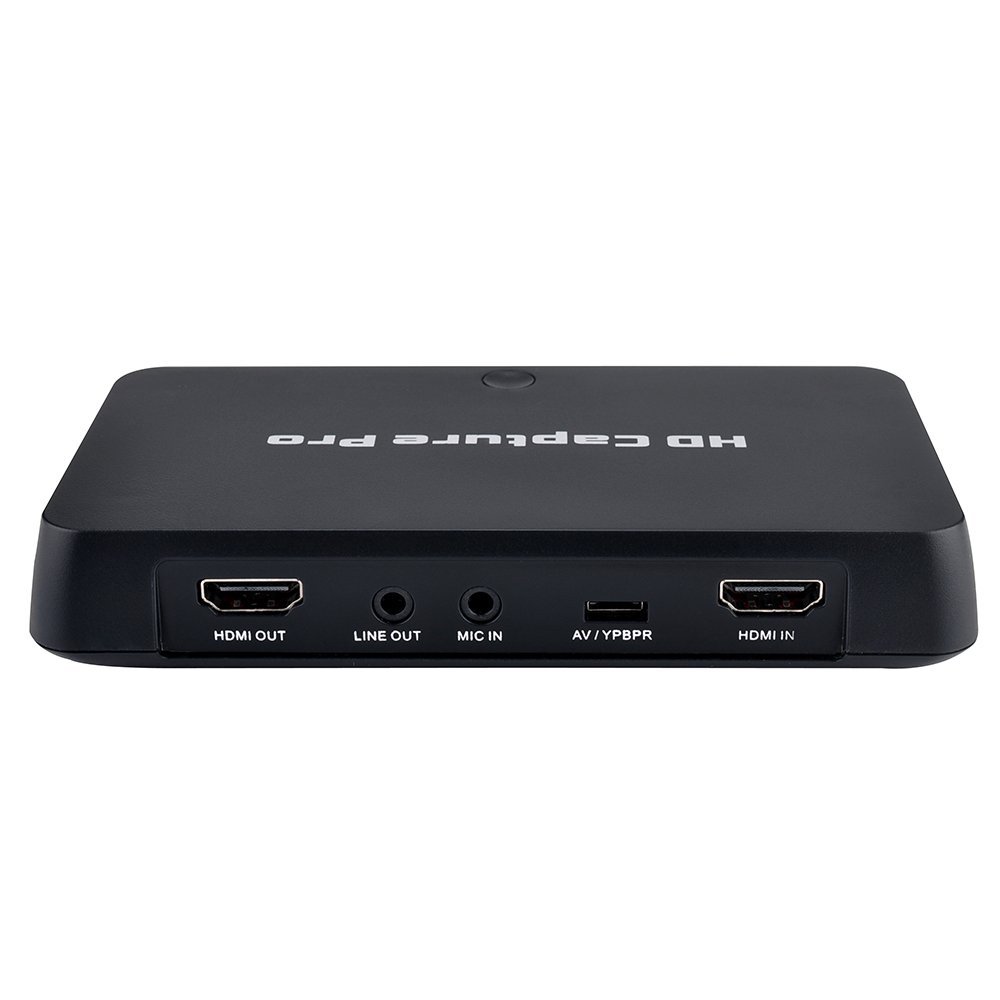

Video Input: HDMI, Component Video (YPBPR), Composite (RCA/AV) Video
Audio Input: HDMI, 3.5mm Microphone In
Video Output: HDMI
Audio Output: HDMI, 3.5mm Stereo Line Out

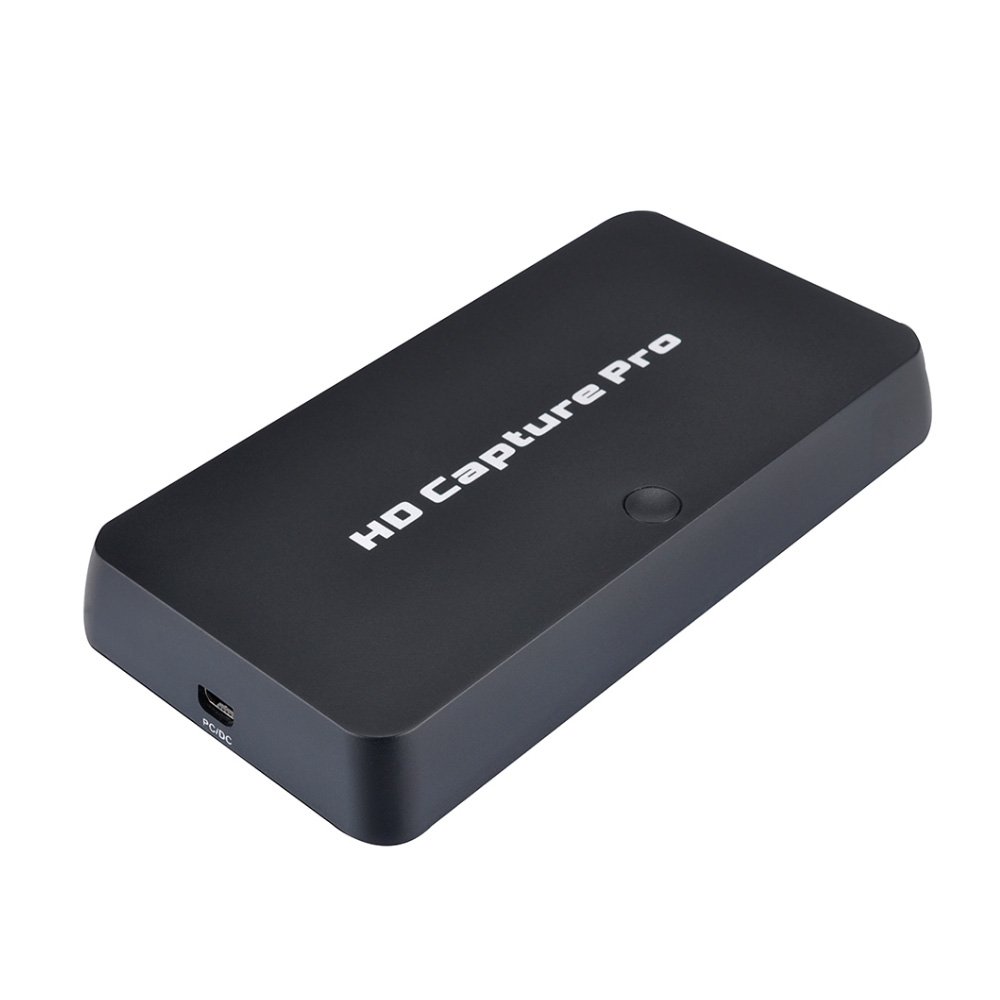

Power Supply: Mini USB DC 5V / 2A
Codec: Hardware H.264 encoder

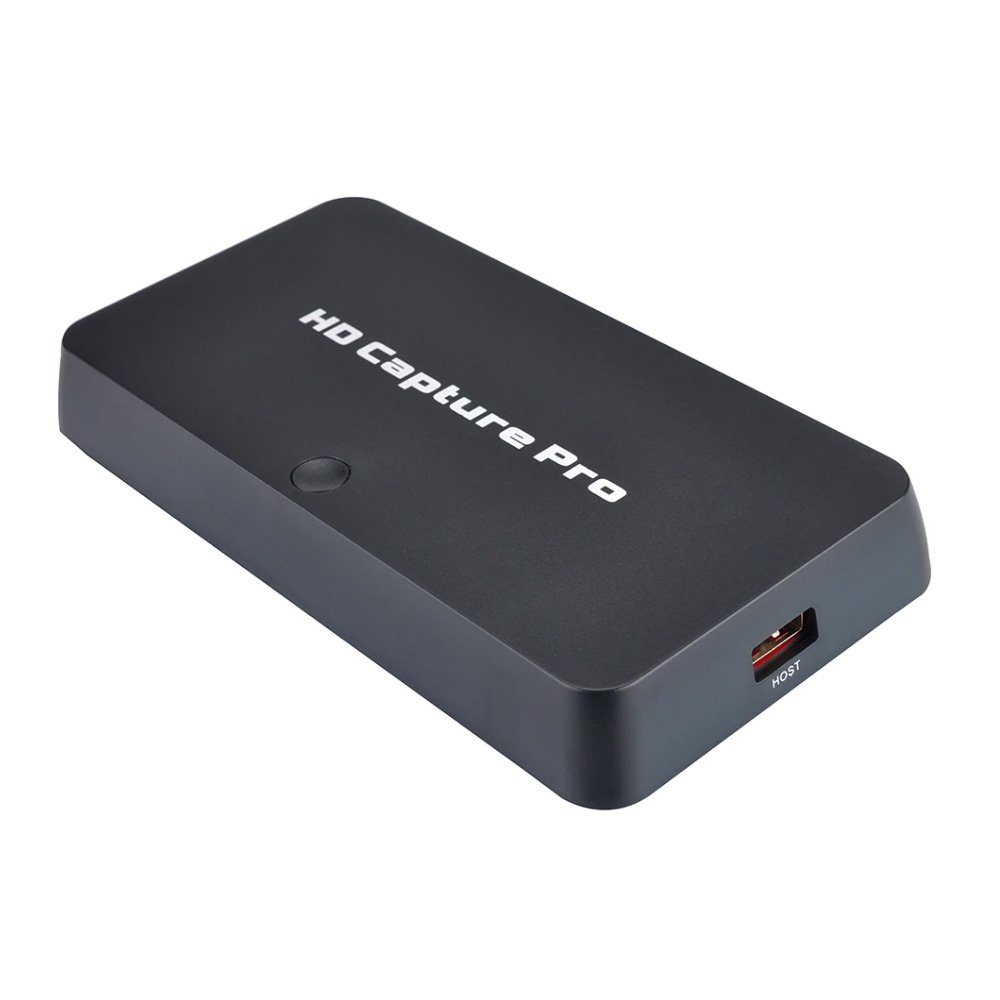

Storage Media: USB Flash Drive, USB Portable Hard Disk (not included)
Support USB Flash Drive Max Capacity: 2T *Note: The exFAT format is not supported.
Resolution Input: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i),
1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p),
1920 x 1080 (60p)
Resolution Output: 1280 x 720p(60p), 1920 x 1080 (30p), 1366 x 768 (60p)
Record Format: Video: MP4, Audio: AAC Stereo
Record Quality: Max: 16Mbps, 1080P 30fps. Can choice recording bitrate: 4M/10M/16M
Record File: split: 1.95GB/Per File, Un-Splite depends storage, named with system time
Record Place: Max: around 120MB / Minute, around 7GB / Hour
Item Size: Approx. 13.1cm * 6.9cm * 2cm / 5.16in * 2.72in * 0.79in
User Interface: On-board Hot Button for one-click recording, LED indicator for working status

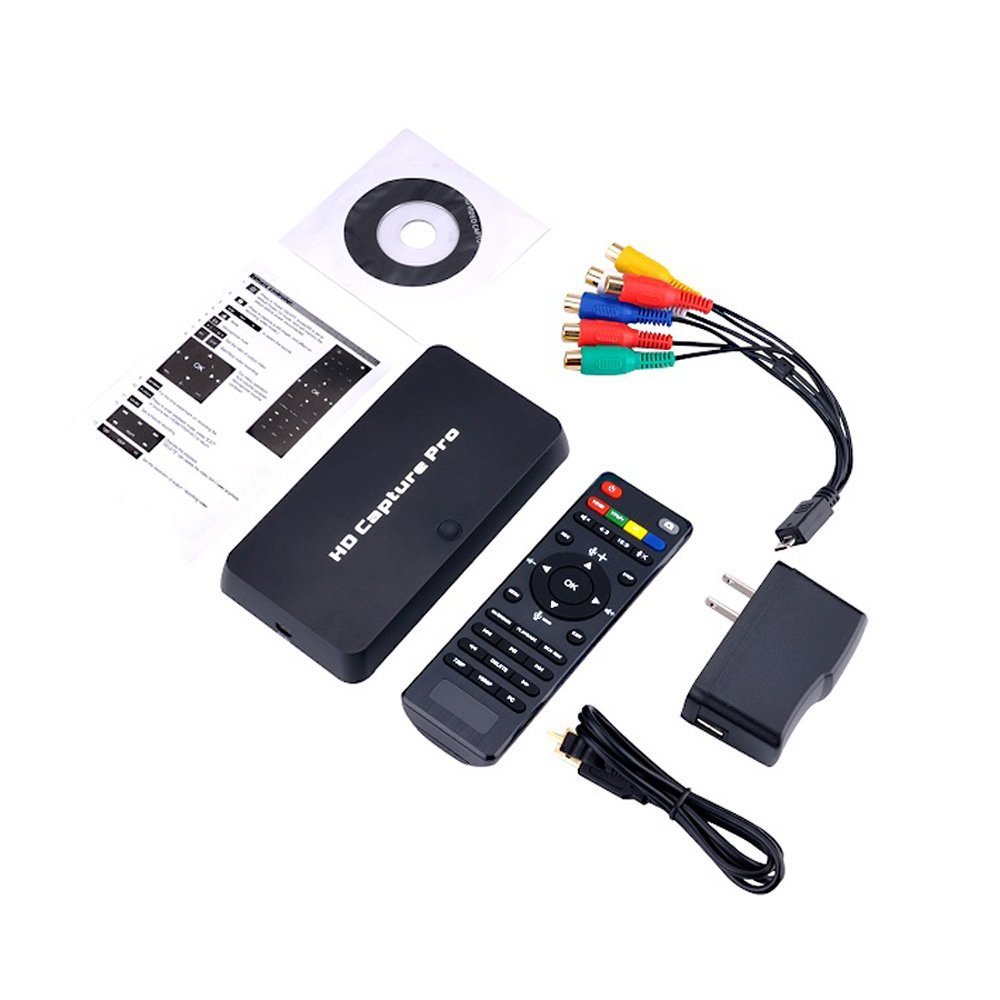

Package Included:
1 x HD Video Pro Converter

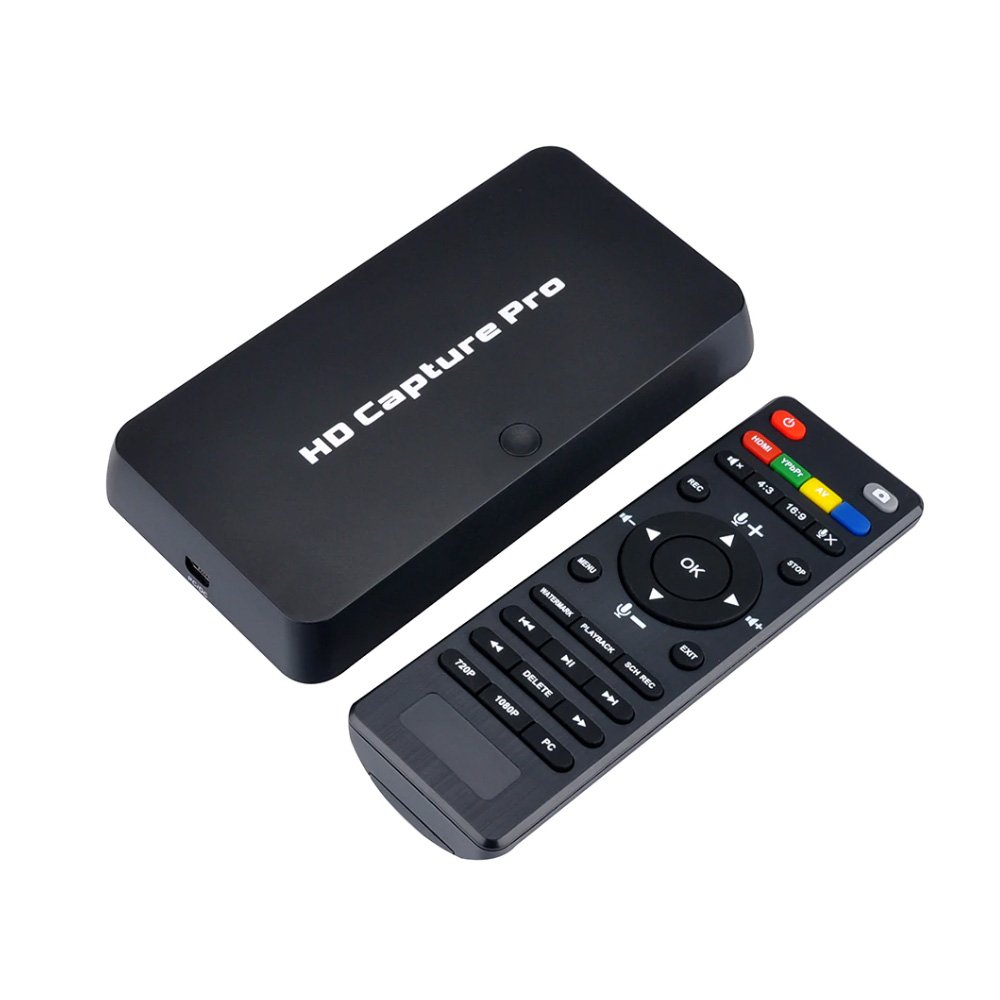

1 x Remote Control
1 x AV Adapter Cable
1 x Power Adapter
1 x Software CD
1 x User Manual
