4 Port 4Kx2K 3D HDMI Splitter
Description
–The MINI HDMI switcher not only has the key-press-switching function, but also has the intelligent function.
–The MINI HDMI switcher routes high definition video (in multiple-resolutions up to 4K x 2K) and digital audio from any one of the several sources to display units.
–All input accommodate the connections of the high definition video sources simultaneously,
–Compatible well for HD-DVD. SKY-STB, PS3, Xbox360 etc. The output sends the high definition audio/video signals to a high definition display
Features
-Support compressed and uncompressed digital audio formats including DTS-HD, Dolby True HD and LPCM7.1
-Supports HDCP, 8bit per channel (24bit all channel) deep color.
-3D Compatible (If your devices support 3D).
-Support 4Kx2K resolution.
-HDMI Version: V1.4b.
-Support 3.2Gb data rate for TMDS clock up to 320Mhz.
-Support multiple high definition input sources, such as Xbox 360, Xbox One, PS3, PS4, HDTV, STB, Blu-Ray, DVD, Beamer, DVB Receiver, TFT Monitor, etc.
Specification
Device Type: 1×4 HDMI Splitter
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p(TTL)
Power Supply: DC 5V/2A
HDMI Version: 1.4b
Max Single Link Range: 1920×1080, 1080P, 3D 1080P/24Hz/4K
HDMI Resolution: 480i/576i/480p576p/720p1080i/1080p/4K
Operating Temperature: -15~+55
Max. Cable Extension: 15m AWG26 HDMI Standard Cable
Power Adapter: Input: AC (50HZ,60HZ) 100V-240V; Output:DC5V 2A
Size: approx. 65 x 62 x 22mm/ 2.55" x 2.44" x 0.87"
Color: Black

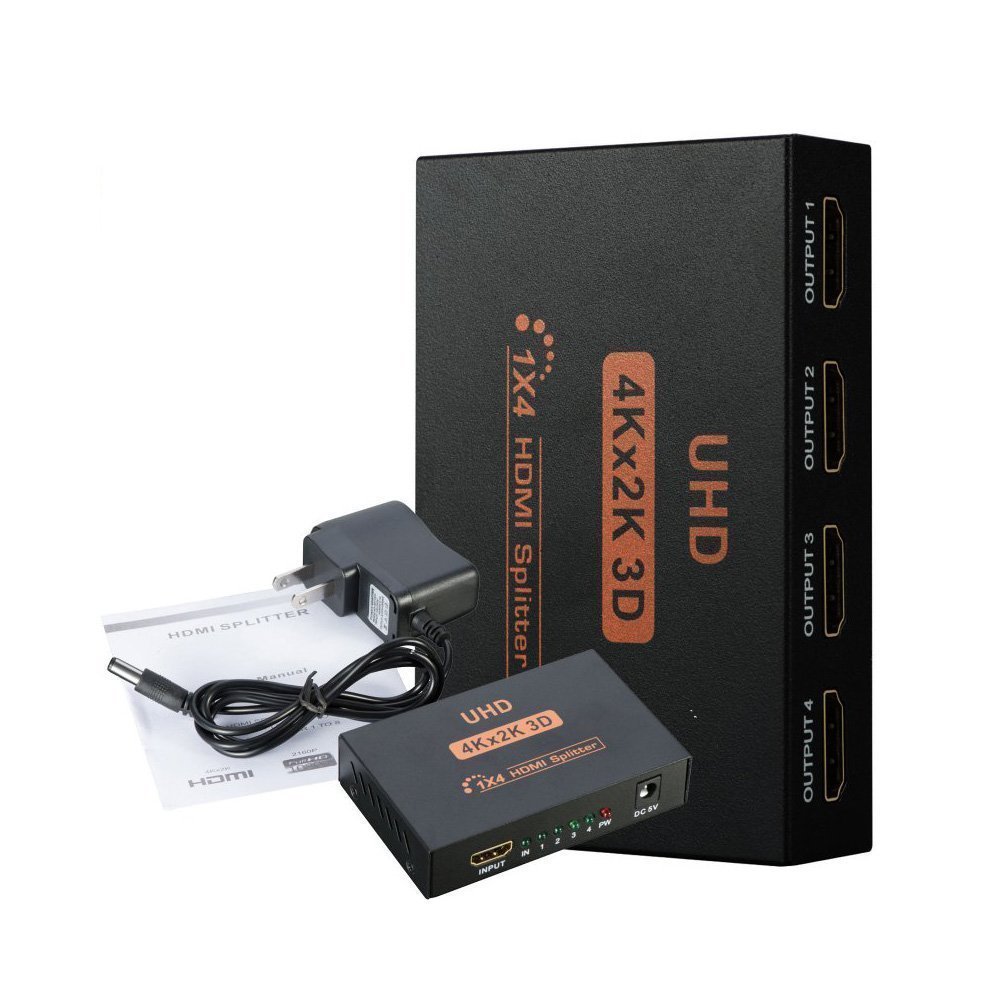

Package included
1 x 4 port 4Kx2K HDMI Splitter
1 x Power Adapter
