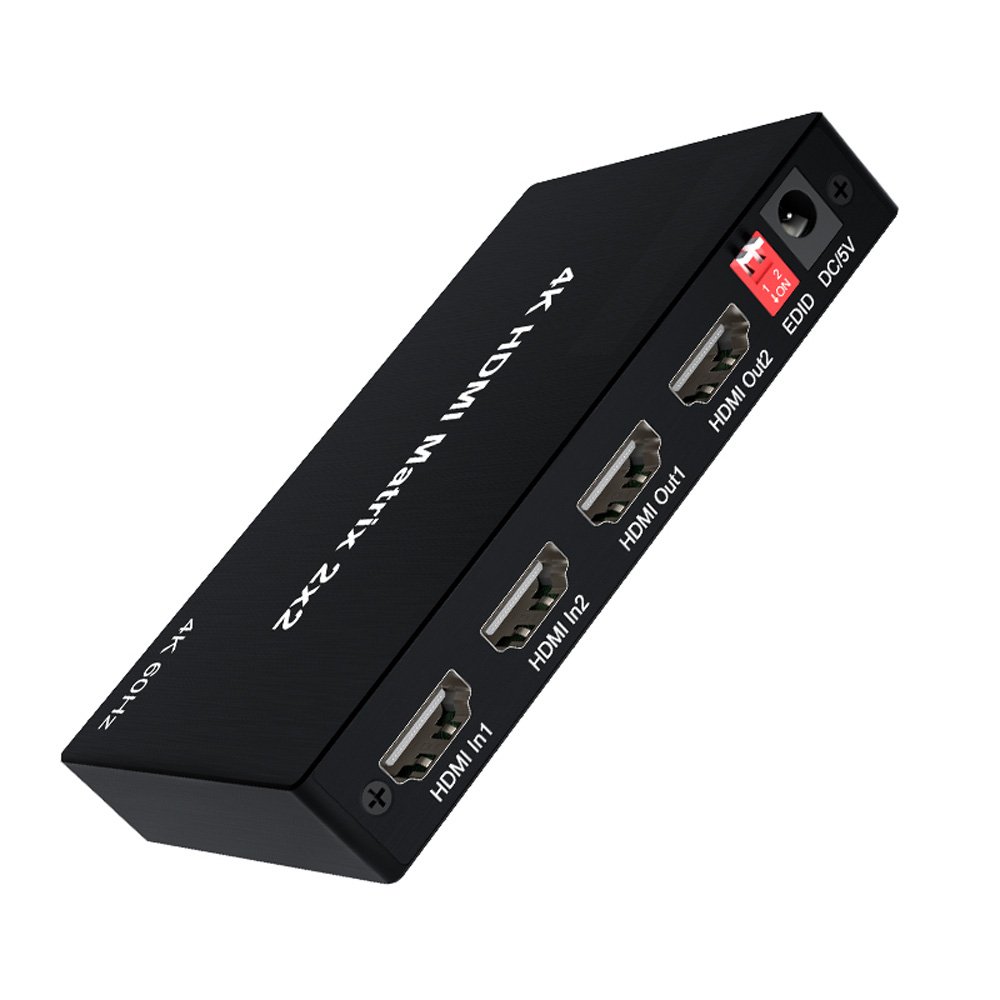

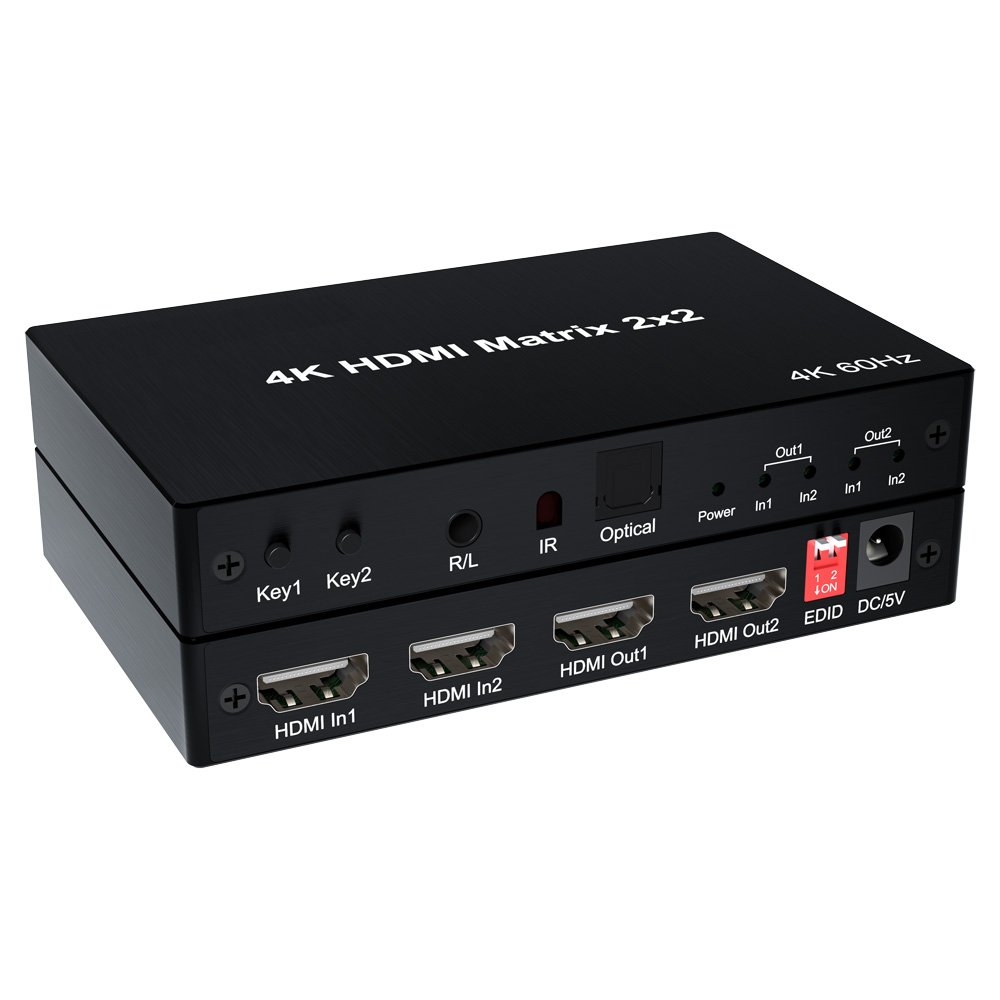

2 x 2 HDMI 2.0 Matrix Switch Splitter Box
This 2xw HDMI 2.0 matrix can connect 2 HD signal source display to 2 HD display, it allows 2 HDMI signal to be split or switched to two HDMI compatible monitors or projectors. IT amplified the HDMI signal as wll.
The 2 input signal can be switched via a included remote control. it support full HD video up to 3840×2160/60Hz
Support HDMI Ver 2.0
Support 3D, 4K
Support highest video resolution 3840 x 2160/60Hz
Support 2.5Gbps data rate for tmds clock up to 320MHz
Support 8/10/12 bit deep color
Support Audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max Bandwidth: 600MHz
Max bud rate: 6Gbps
Input cable distance: (1080p resolution) <=20M, (4K resolution) <=10M AWG26 HDMI Standard cable
Max working current: 300ma
Ports:
HDMI Input Port: 2
HDMI Output Port: 2
Optical Audio Output Port: 1
3.5mm Aux Output Port: 1
Package Included:
1 x 2×2 HDMI Matrix box
1 x Power Adapter
1 x Remote Control
